TNE Work Support Products

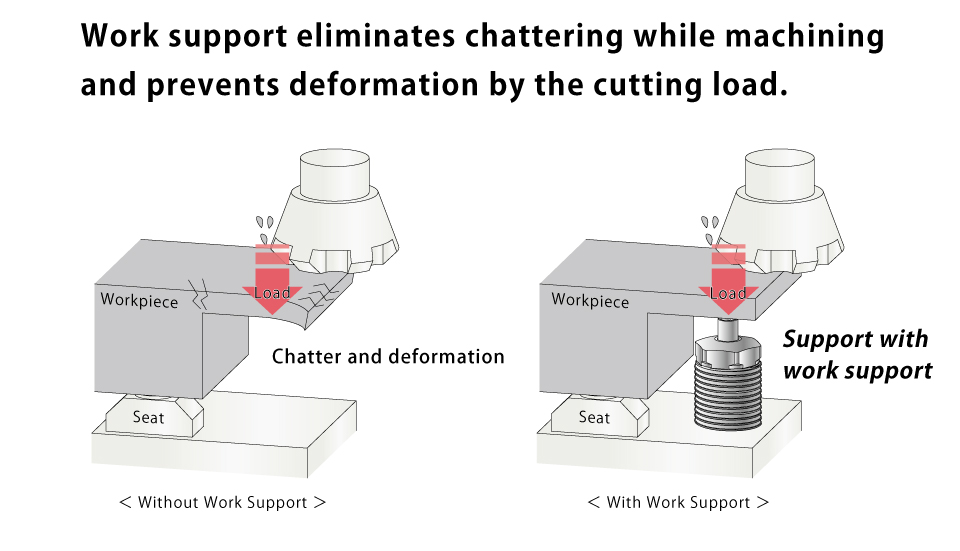

Strong support from opposite side when load is applied.
Prevents chattering while machining and deformation caused by the cutting load.

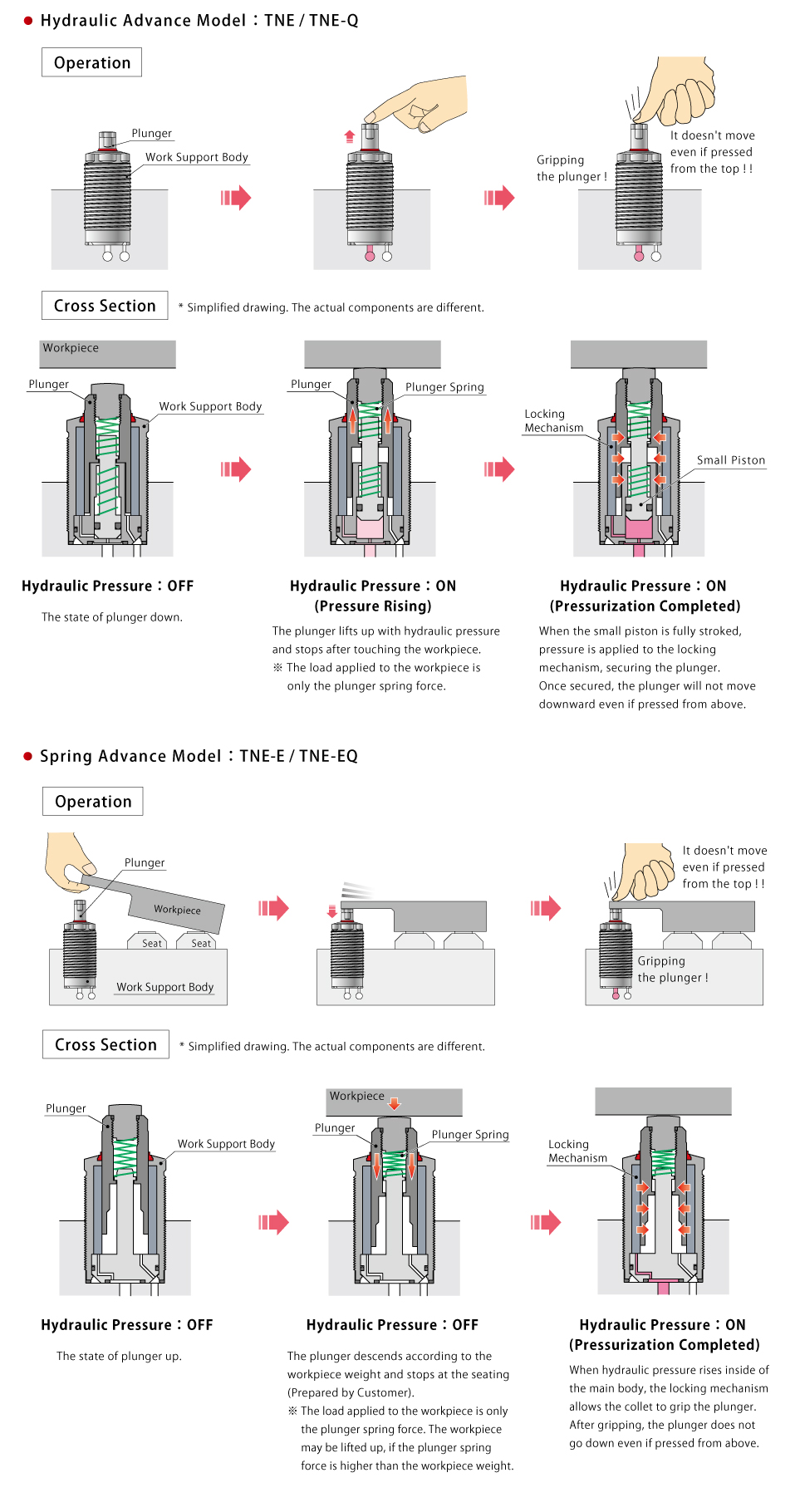

ModelTNEHydraulic Advance Model

Plunger lifts up with hydraulic pressure.
- 2CAD DXF
ModelTNE-QHydraulic Advance Long Stroke Model

Long stroke option has longer stroke than that
of hydraulic advance model.
- 2CAD DXF
- 3CAD X_T
- 3CAD IGES
- 3CAD STEP
ModelTNE-MHydraulic Advance Air Sensing Model

Ability to confirm plunger action with an air
catch sensor.
- 2CAD DXF
- 3CAD X_T
- 3CAD IGES
- 3CAD STEP
ModelTNE-ESpring Advance Model

Plunger is lifted up with spring force, and it
descends according to the workpiece weight.
- 2CAD DXF
- 3CAD X_T
- 3CAD IGES
- 3CAD STEP
ModelTNE-EQSpring Advance Long Stroke Model

Long stroke option has longer stroke than that
of spring advance model.
- 2CAD DXF
- 3CAD X_T
- 3CAD IGES
- 3CAD STEP
ModelTNE-M-ESpring Advance Air Sensing Model

Ability to confirm plunger action with an air
catch sensor.
- 2CAD DXF
- 3CAD X_T
- 3CAD IGES
- 3CAD STEP
