Compact Non-Leak Reducing Valve (Vertical Mounting)

ModelBMV

Control Valve
2～35MPa

BMV
Non-leak reducing valves reduce hydraulic circuit pressure of a fixture.
Partial in-line circuit pressures can be reduced.
| NEW | The new vertical valve allows for efficient use of vertical space, enabling compact
jig design. Can be placed with a narrow distance. Operation and maintenance are easy.

Product Information

| NEW | Vertical Mounting Model for
In-Line type Non-Leak Reducing Valve

Optimizing space requirements for hydraulic fixtures

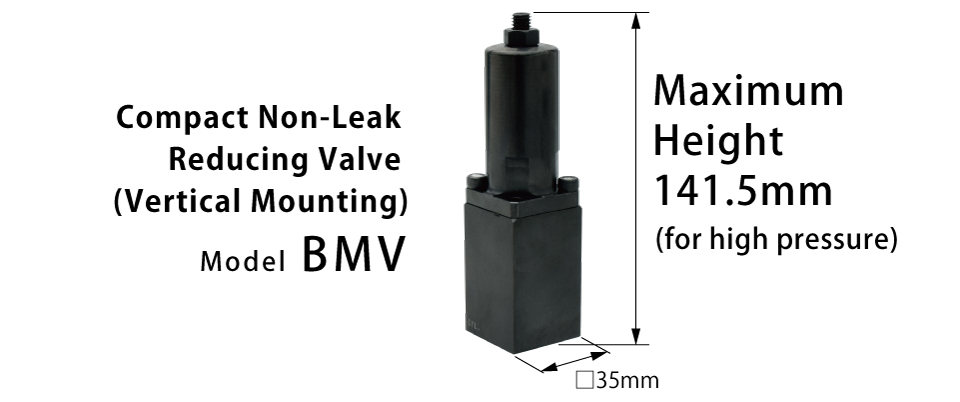

Introducing Compact Non-Leak Reducing Valve (Vertical Mounting) (Model：BMV)

■Features

1. Compact ： Body Size □35mm
2. Piping All Set ： Bottom Gasket model
Simple machining for mounting hole
3. Simple Mounting ： Flange-mounted with bolts for
installation using standard tools.
4. High Durability ： Built-in high-density filter
5. High Pressure ： Operating Pressure up to 35MPa

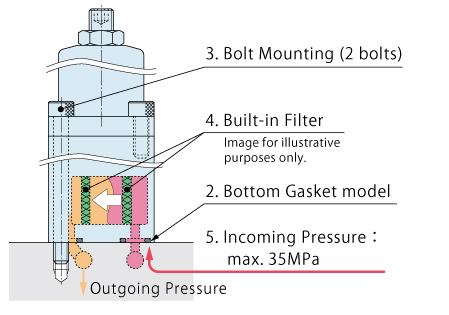

Advantages of Compact Non-Leak Reducing Valve (Vertical Mounting) (Model：BMV)

【Before】

With our conventional products, horizontal mounting results in a lower height but a larger projected area.

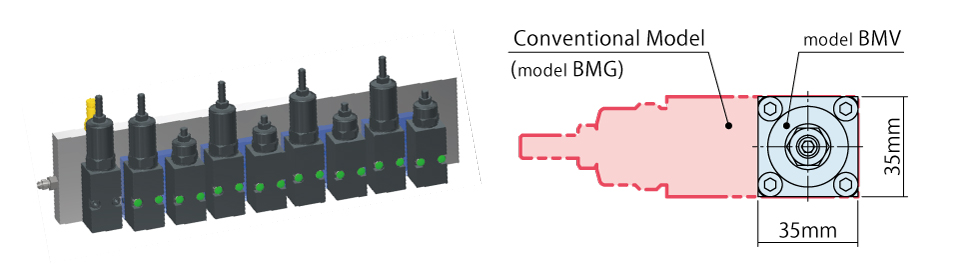

Comparison with Conventional Reducing Valve (Model：BMG)

【After】

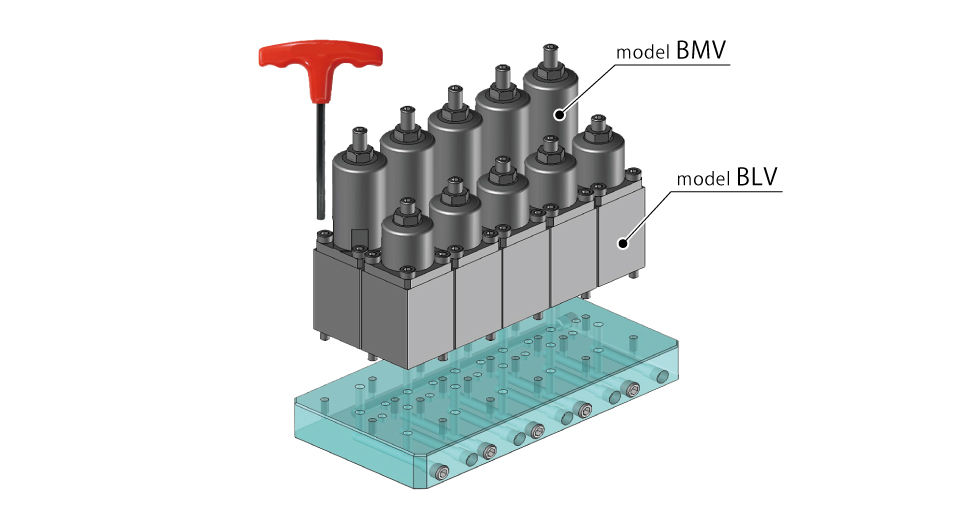

Manifold jig example using model BLV and model BMV together.
The valves are concentrated to slim down the entire jig.

Manifold jig example using model BLV and model BMV together.The valves are concentrated to slim down the entire hydraulic jig.

Adjustable Set Pressure

※ The factory default pressure is set to the value specified in the model code at the time of order.

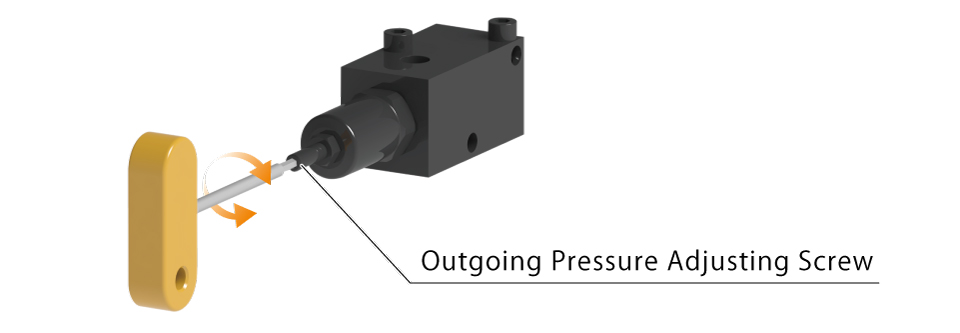

Set Pressure Adjusting Method for Compact Non-Leak Reducing Valve (Vertical Mounting) (Model：BMV)

■Circuit Symbol

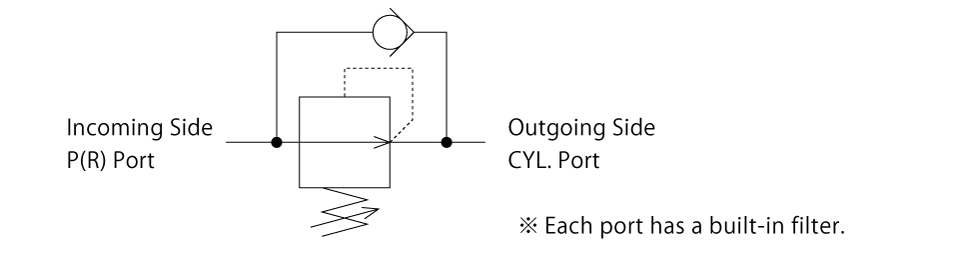

Circuit Symbol of Compact Non-Leak Reducing Valve (Vertical Mounting) (Model：BMV)

■Action Description

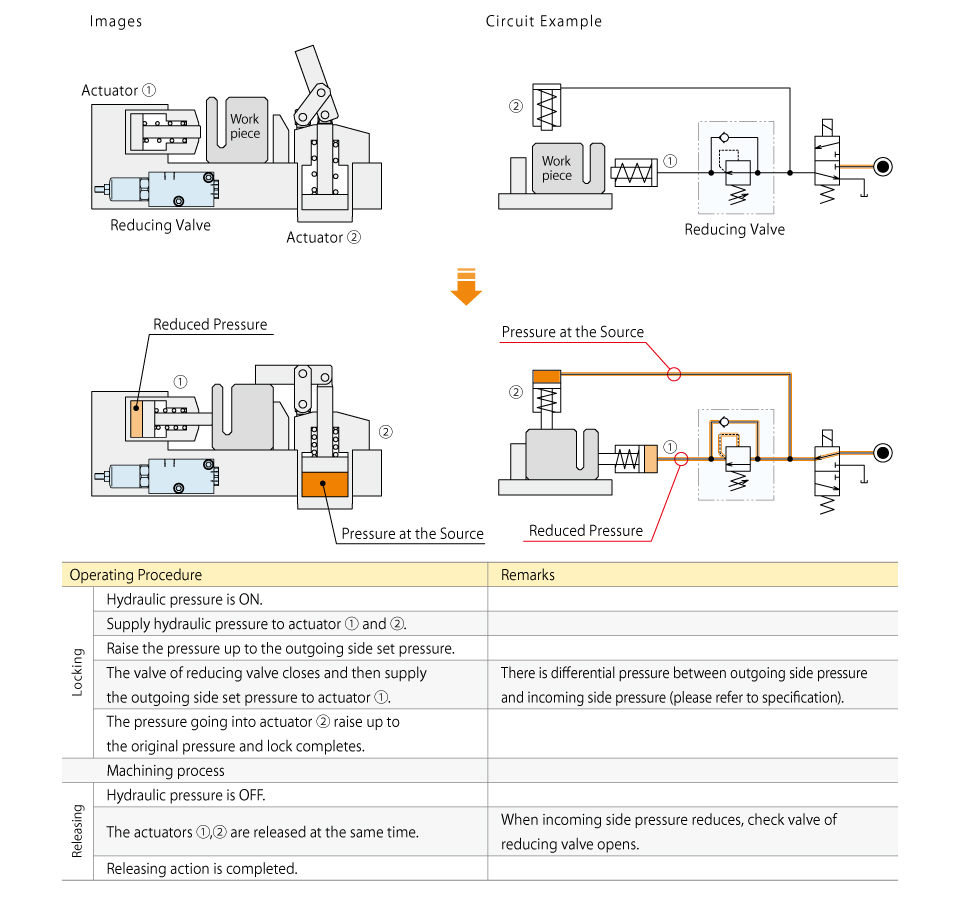

Action Description of Compact Non-Leak Reducing Valve (Vertical Mounting) (Model：BMV)
