Compact Sequence Valve (Vertical Mounting)

ModelBLV

Control Valve
2～35MPa

BLV
This valve operates multiple actuators in sequence to perform positioning and clamping.
When incoming port pressure reaches the sequence setting pressure value, the pressure
is supplied to outgoing port.
| NEW | The new vertical valve allows for efficient use of vertical space, enabling compact
jig design. Can be placed with a narrow distance. Operation and maintenance are easy.

Product Information

| NEW | Vertical Mounting Model for
Sequence Valves: Precise Sequential Actuation

Optimizing space requirements for hydraulic fixtures

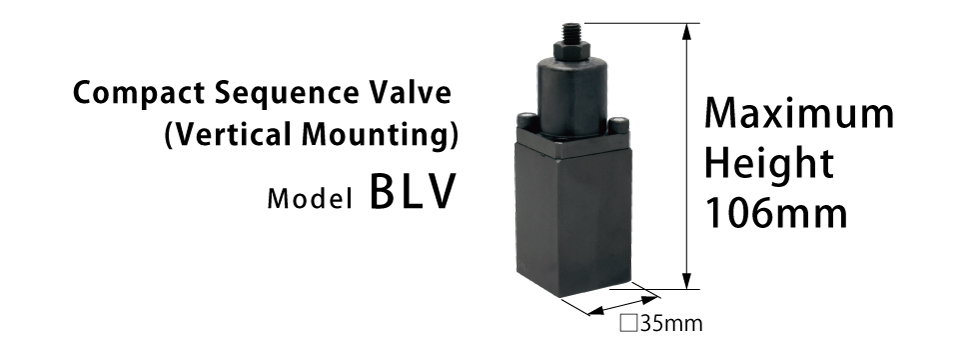

Introducing Compact Sequence Valve (Vertical Mounting) (Model：BLV)

■Features

1. Compact ： Body Size □35mm
2. Piping All Set ： Bottom Gasket model
Simple machining for mounting hole
3. Simple Mounting ： Flange-mounted with bolts for
installation using standard tools.
4. High Durability ： Built-in high-density filter
5. High Pressure ： Operating Pressure up to 35MPa

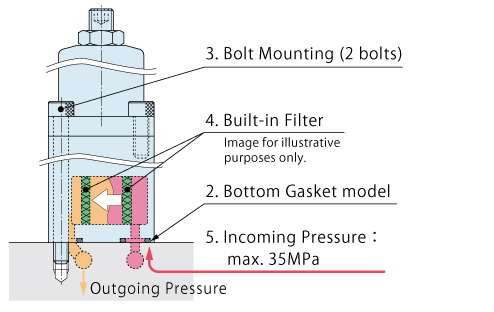

Advantages of Compact Sequence Valve (Vertical Mounting) (Model：BLV)

【Before】

With our conventional products, horizontal mounting results in a lower height but a larger projected area.

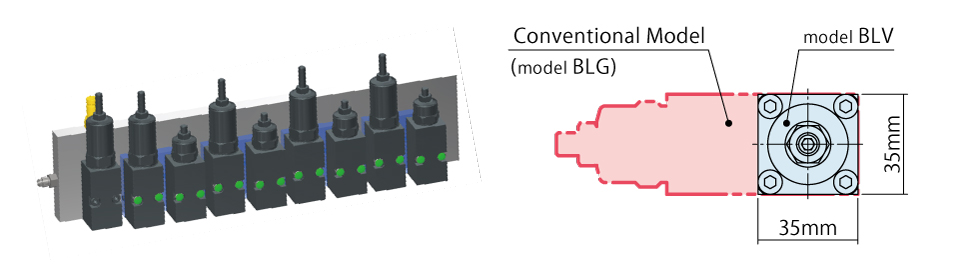

Comparison with Conventional Sequence Valve (Model：BLG)

【After】

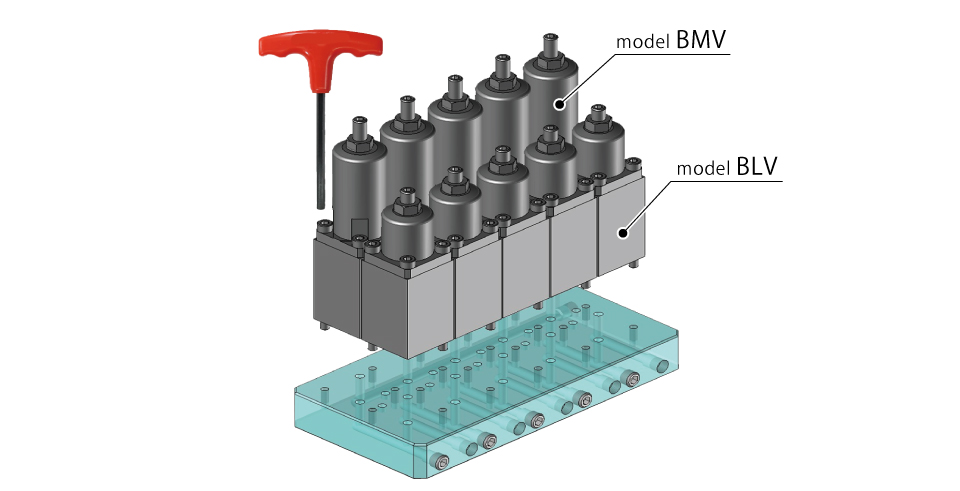

Manifold jig example using model BLV and model BMV together.
The valves are concentrated to slim down the entire jig.

Manifold jig example using model BLV and model BMV together.The valves are concentrated to slim down the entire hydraulic jig.

【After】

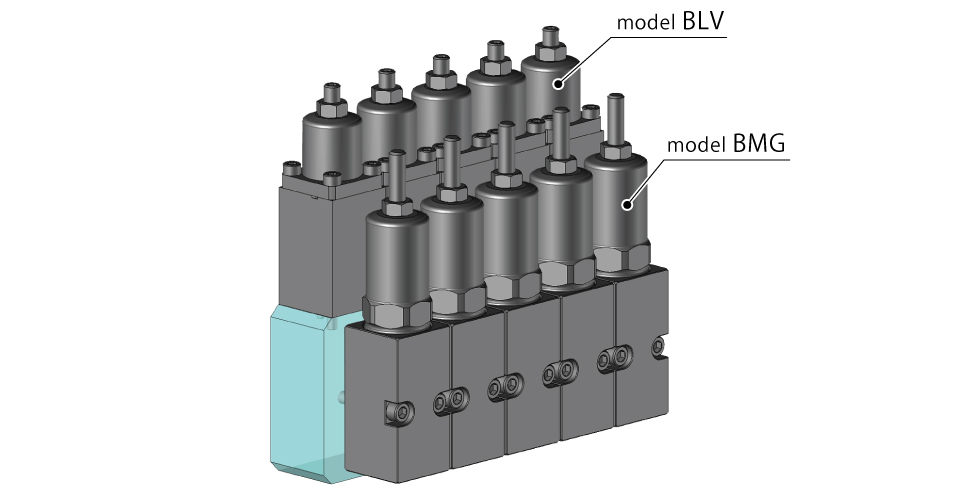

Manifold jig example using model BLV and model BMG together.
This unit combines both horizontal and vertically mounted valves.

Manifold jig example using model BLV and model BMG together. This unit combines both horizontal and vertically mounted valves.

Adjustable Set Pressure

※ The factory default pressure is set to the value specified in the model code at the time of order.

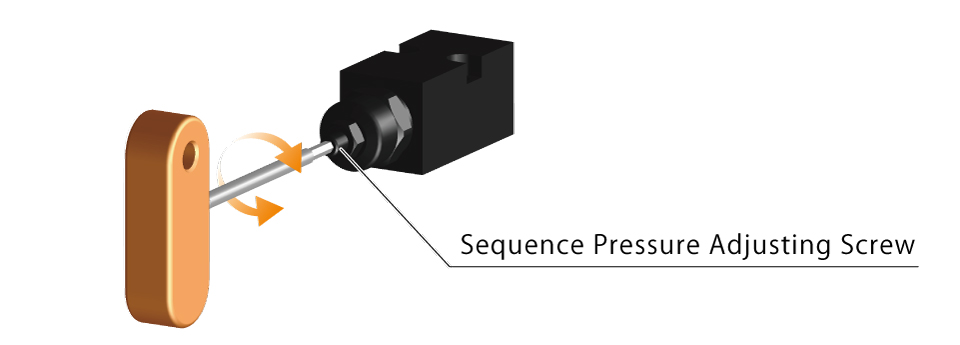

Set Pressure Adjusting Method for Compact Sequence Valve (Vertical Mounting) (Model：BLV)

■Circuit Symbol

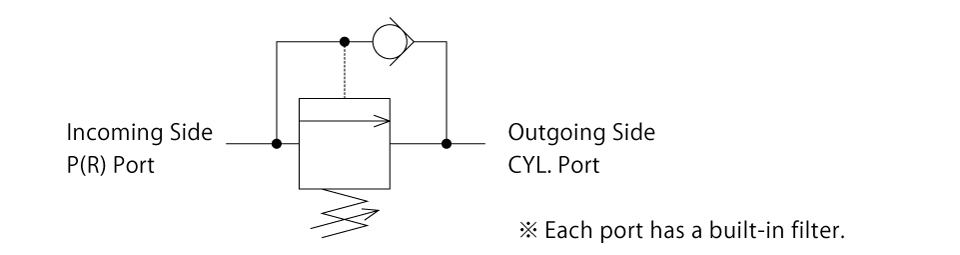

Circuit Symbol of Compact Sequence Valve (Vertical Mounting) (Model：BLV)

■Action Description

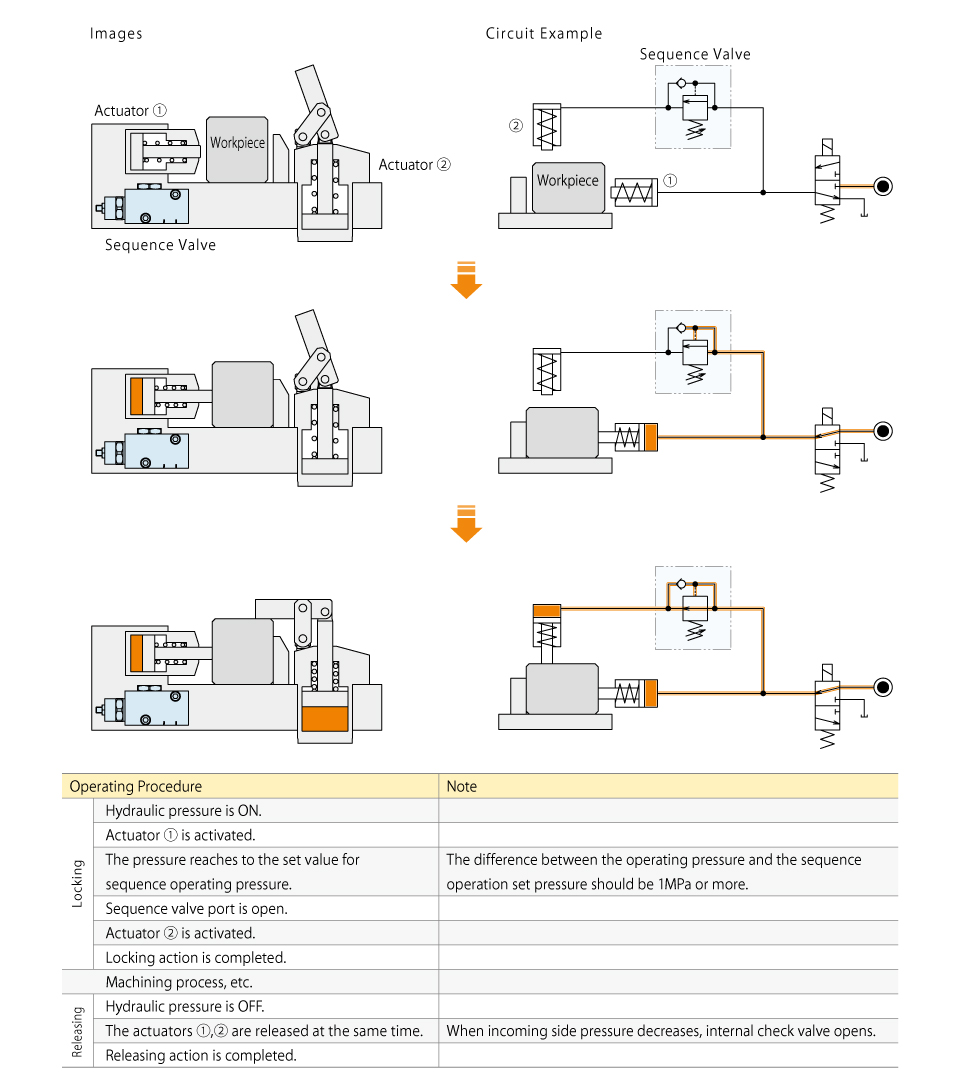

Action Description of Compact Sequence Valve (Vertical Mounting) (Model：BLV)
