Sequence Valve

ModelBLS

Control Valve
2～30MPa

BLS
This valve operates multiple actuators in sequence to perform positioning and clamping. When incoming port pressure reaches the sequence setting pressure value, the pressure is supplied to outgoing port.

Product Information

■Circuit Symbols

Circuit Symbols

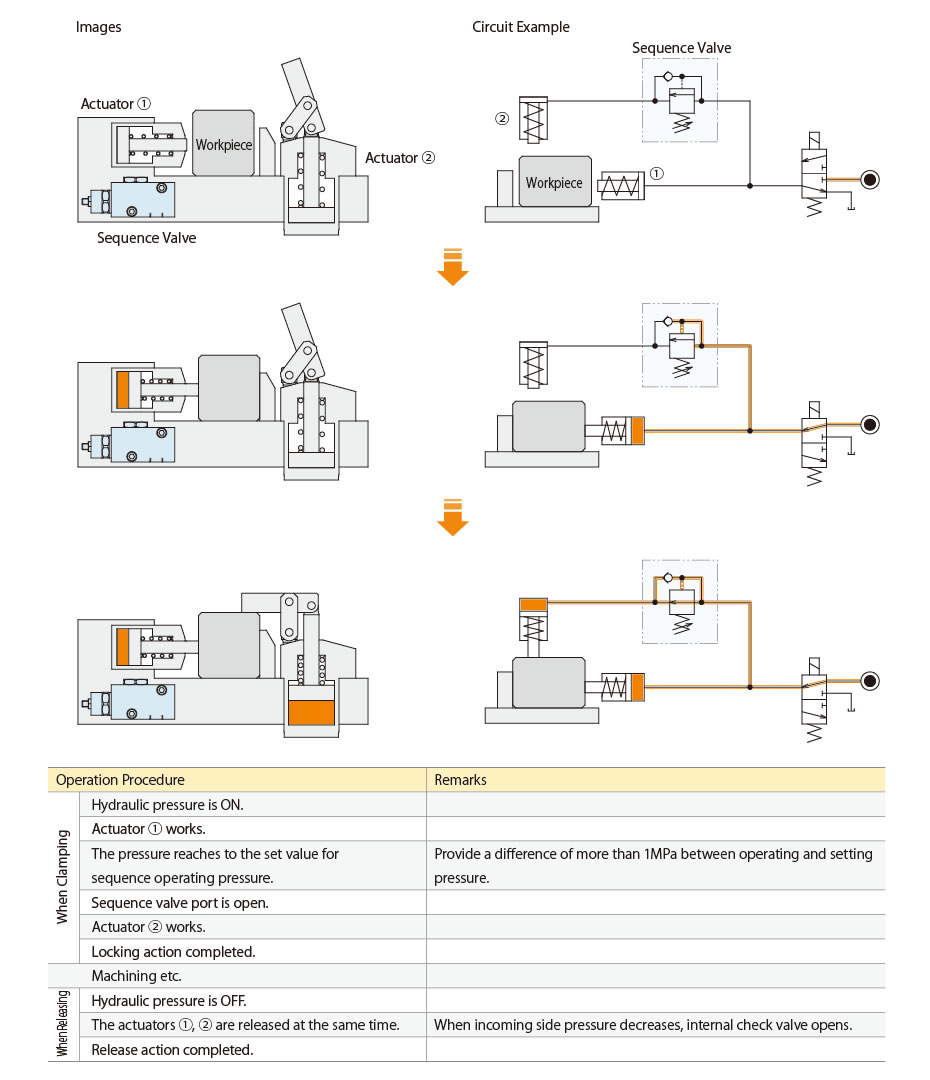

■Action Description

Action Description

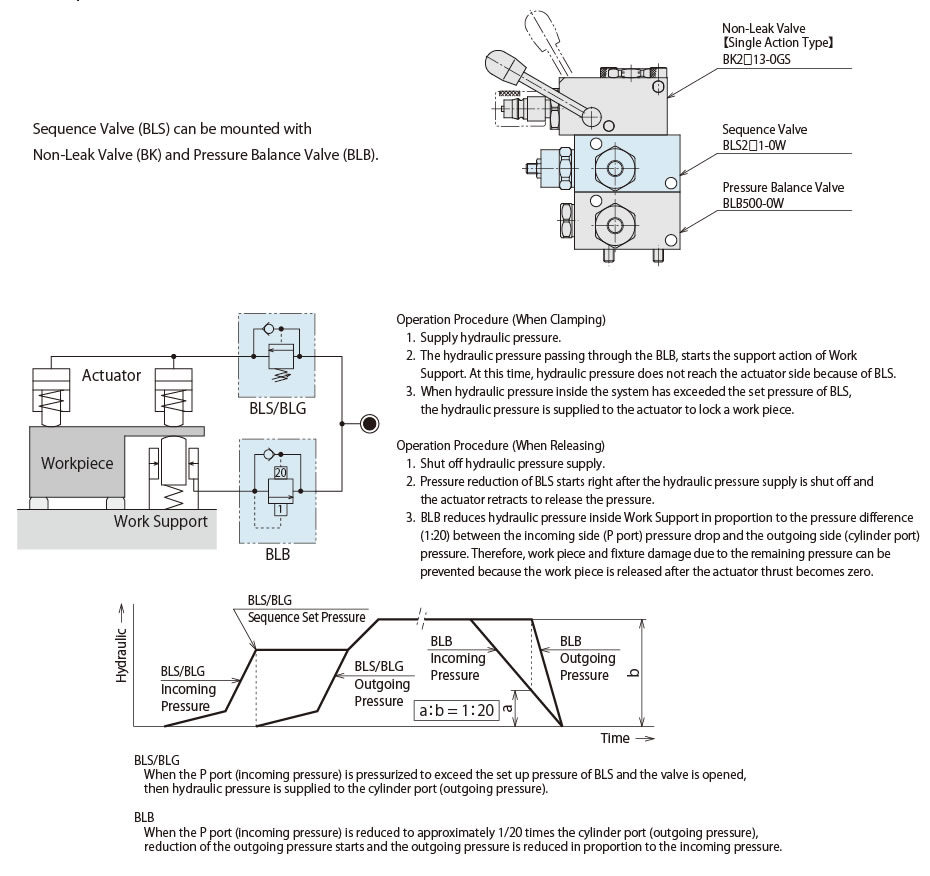

■Example of a combination of BLS and BLB

Example of a combination of BLS and BLB
