Non-Leak Coupler with Pilot Check Valve【Compact】

ModelBGA/BGB


1～7MPa

BGA/BGB
Pilot check valve makes a smooth connection and disconnection of coupler without reaction force. It holds the pressure at fixture side even when the supply of pressure is stopped with coupler connected conditions.

Product Information

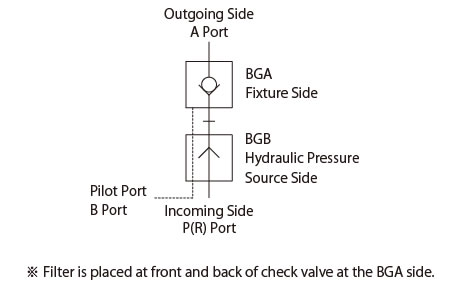

■Circuit Symbols

Circuit Symbols

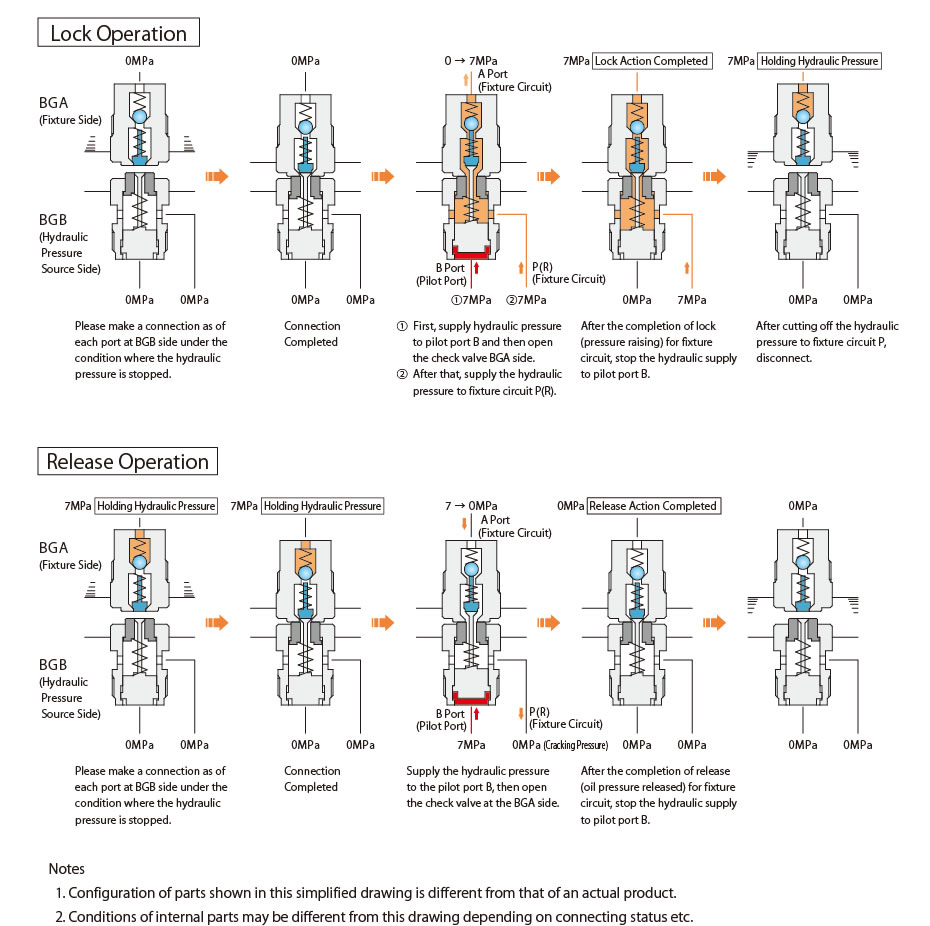

■Action Description

Action Description
