Robotic Hand Changer: 3 ～ 360kg Payload

ModelSWR

Double Action
0.35～1MPa

SWR
High Accuracy・High Rigidity Robotic Tool Changer with 0.003mm Repeatability
No Backlash at Connection (Repeatability：3μm), High Rigidity (Durable for Bending
and Twisting), Long Operational Life (Durability of more than 2 million cycles)
｜Payload：0.5 ~ 360kg｜ ｜Ethernet Electrode option newly added to the line-up｜

Product Information

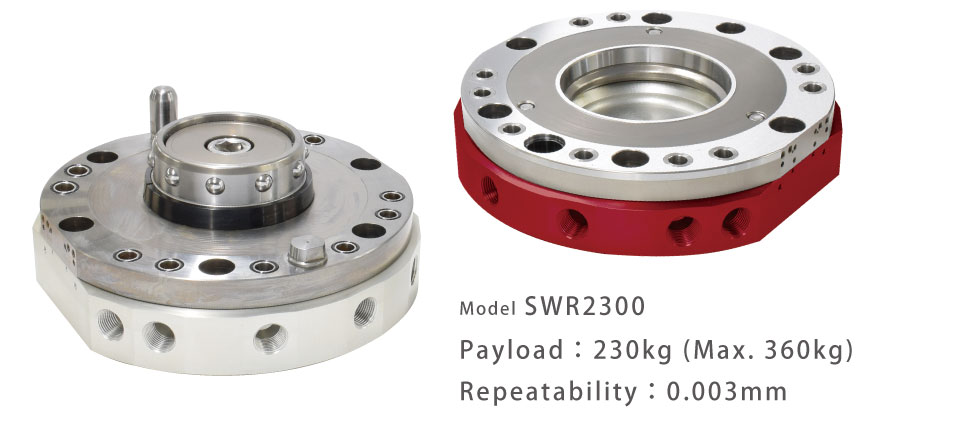

A Broad Lineup of Tool Changers
from 0.5kg Payload to 360kg Payload

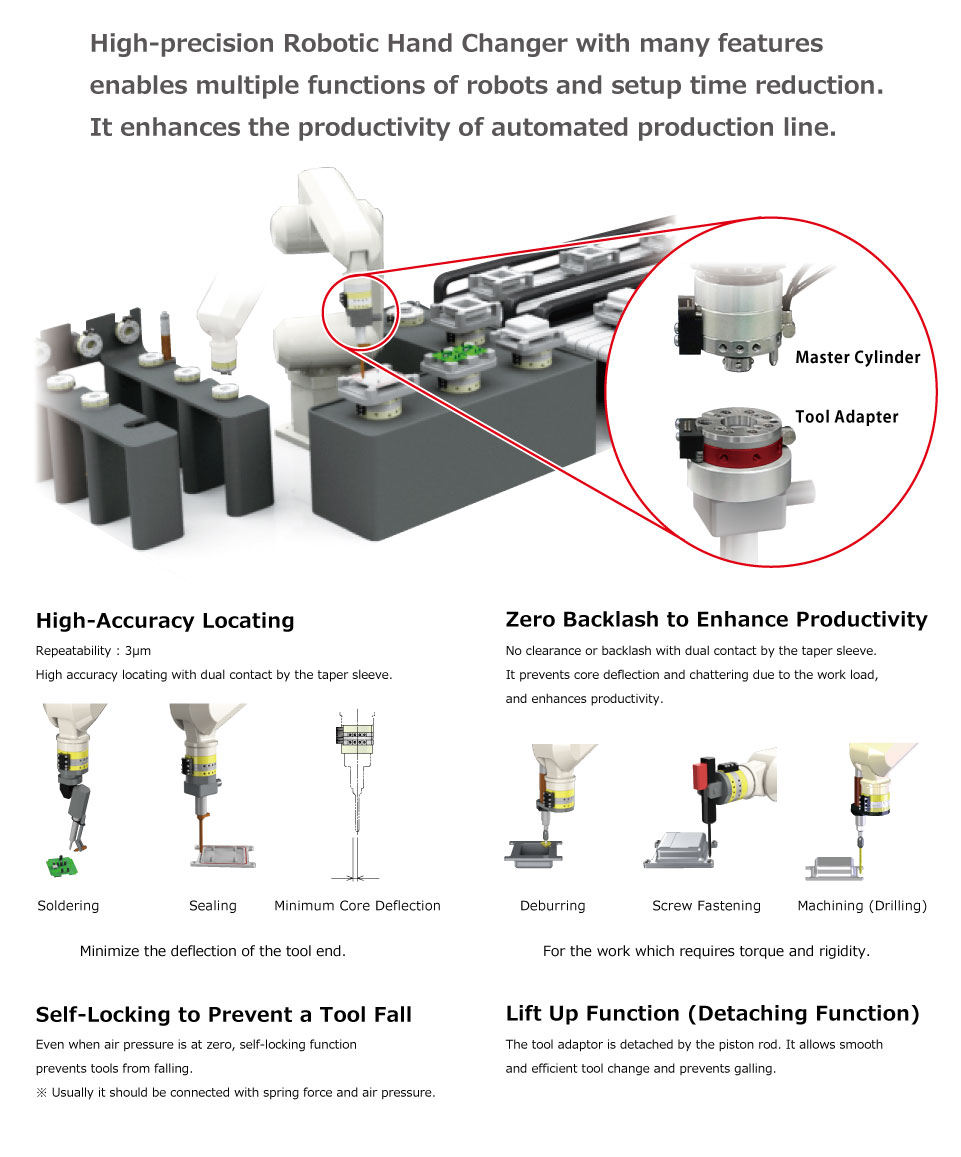

■Features

Features

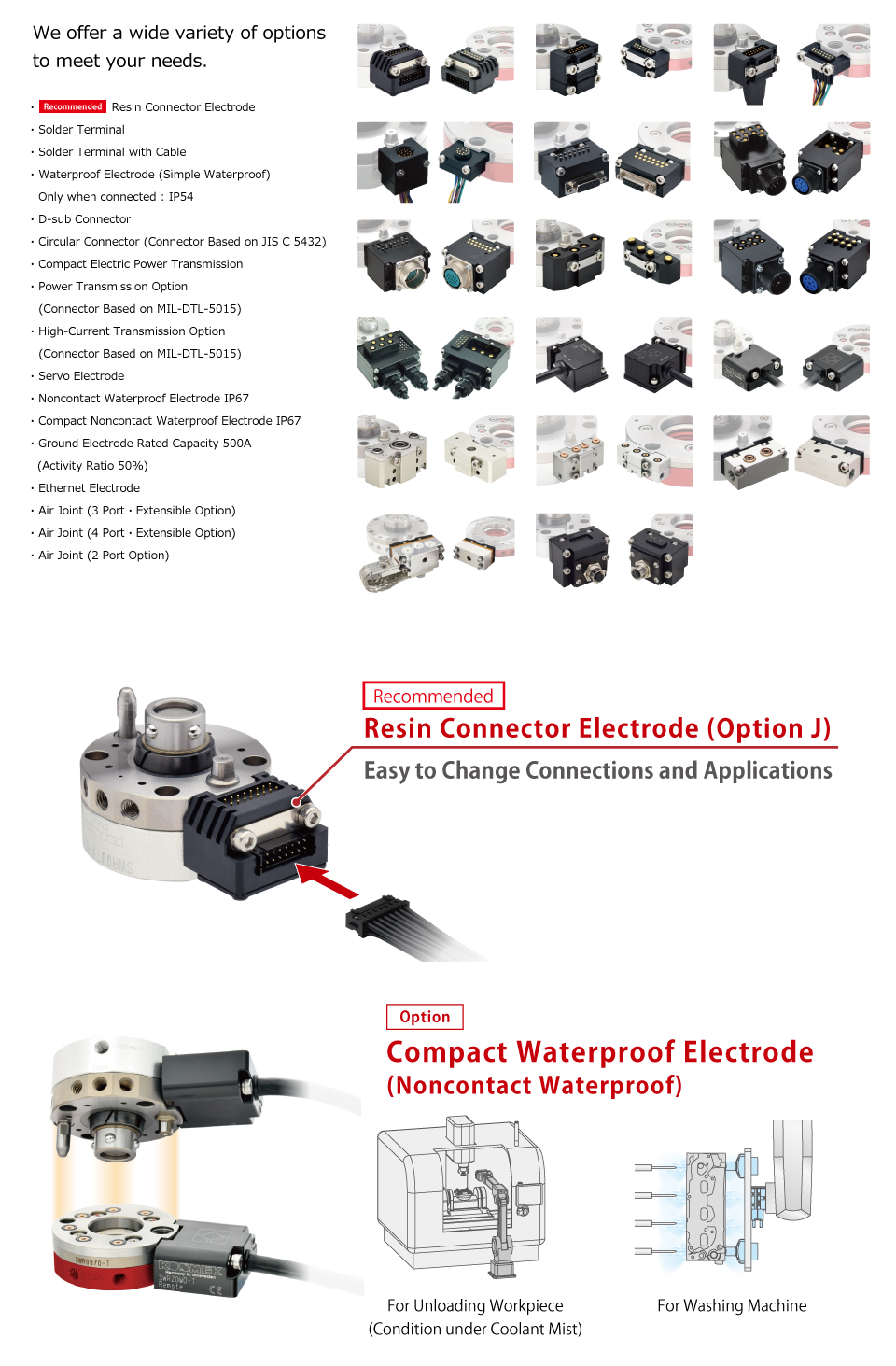

A Variety of Electrode and Air Joint Options

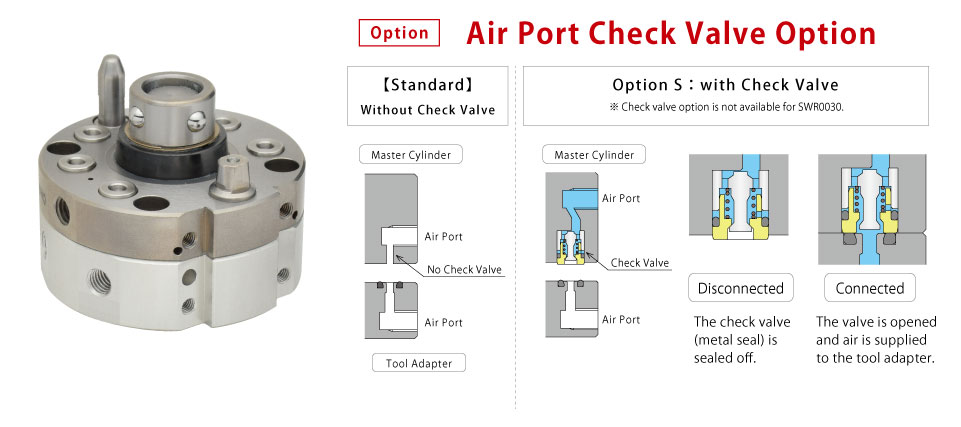

Air Joint with Check Valve
to Simplify Control

Prevent a Tool Fall during Robot Teaching

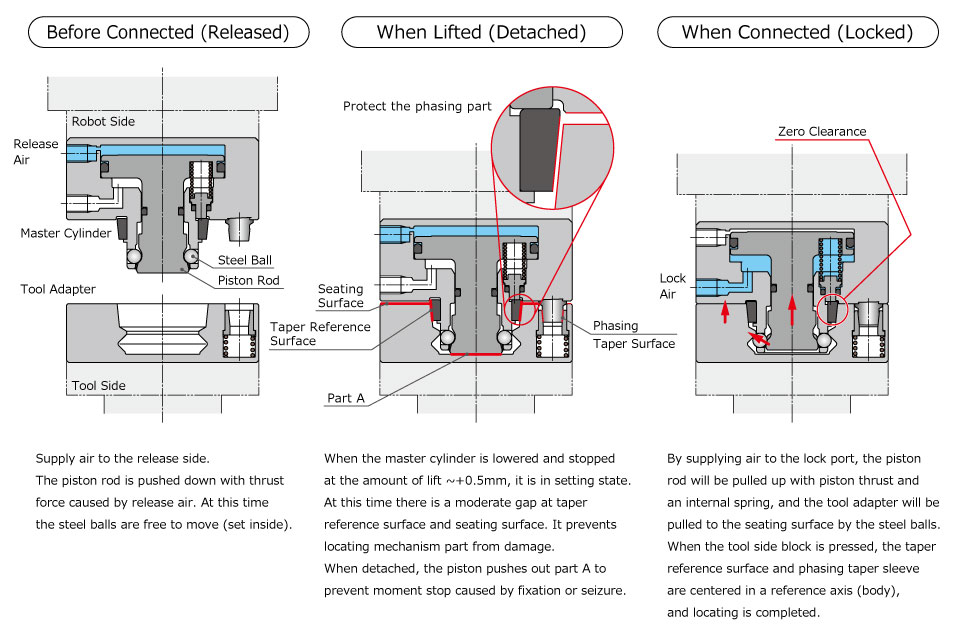

■Action Description

Action Description

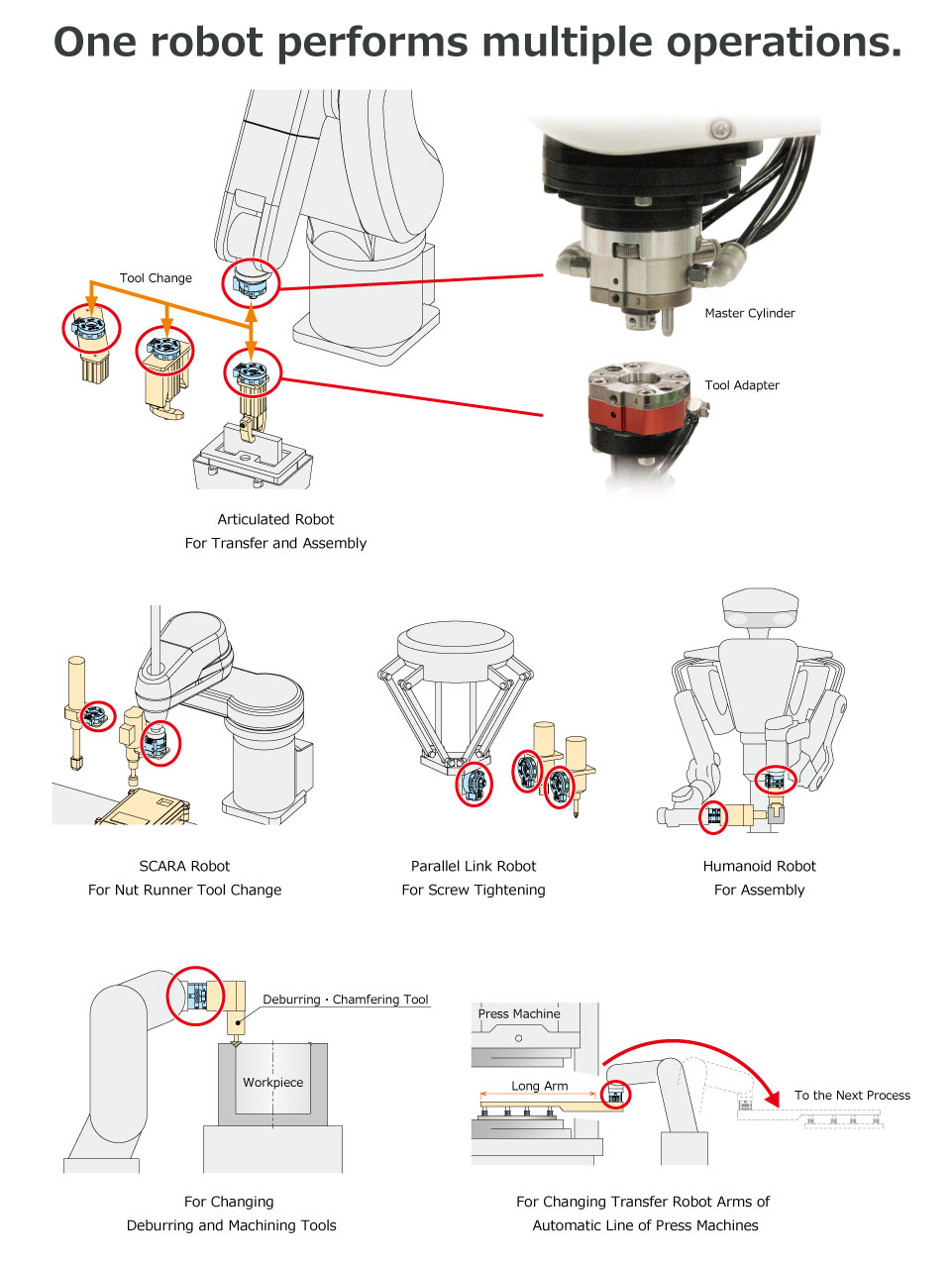

■Application Example

・ Transfer and Assembly with Articulated Robot　　・ Nut-Runner Change with SCARA Robot
・ Screw Tightening with Parallel Link Robot　　　　 ・ Assembly with Humanoid Robot
・ Debburing and Machining Tool Change　　　　　 ・ Press Line as Transfer Arm of Automated Line

Featured Recommendations

Robotic Hand Changer: 0.5～ 1kg Payload

SWR0010

ModelSWR0010

Double Action

0.35～0.7MPa
Robotic Hand Changer for Hollow-Arm Robot

SWRY0135

ModelSWRY0135

Double Action

0.35～1MPa
Adapter Plate
【Only for Robotic Hand Changer (model SWR)】

SWRZ

ModelSWRZ

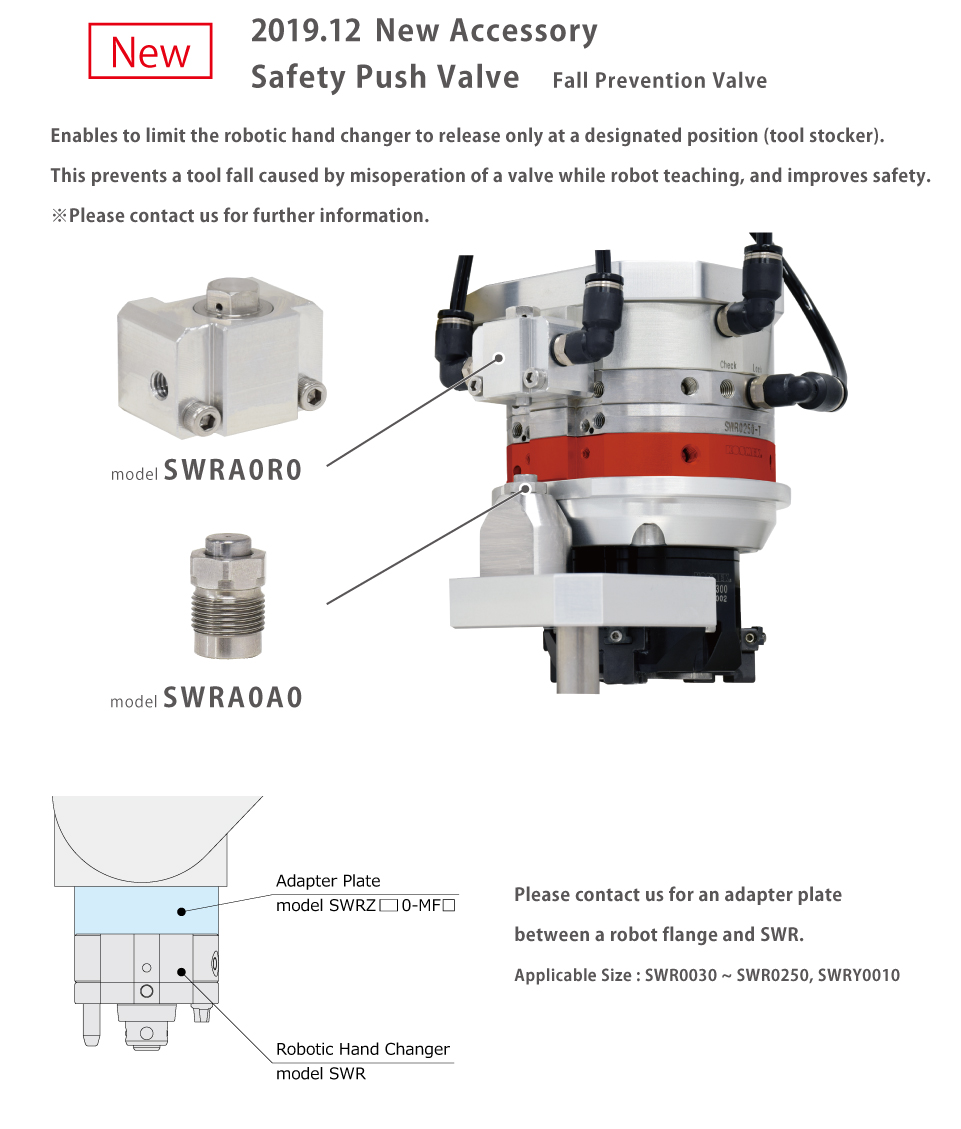

Safety Push Valve
