Single Action Link Clamp【Body Material：Aluminum Alloy】

ModelLM

Single Action
2.5～7MPa

LM
Compact cylinder with built-in link mechanism.
(2014.11 Compact model is added to the line-up.)

Product Information

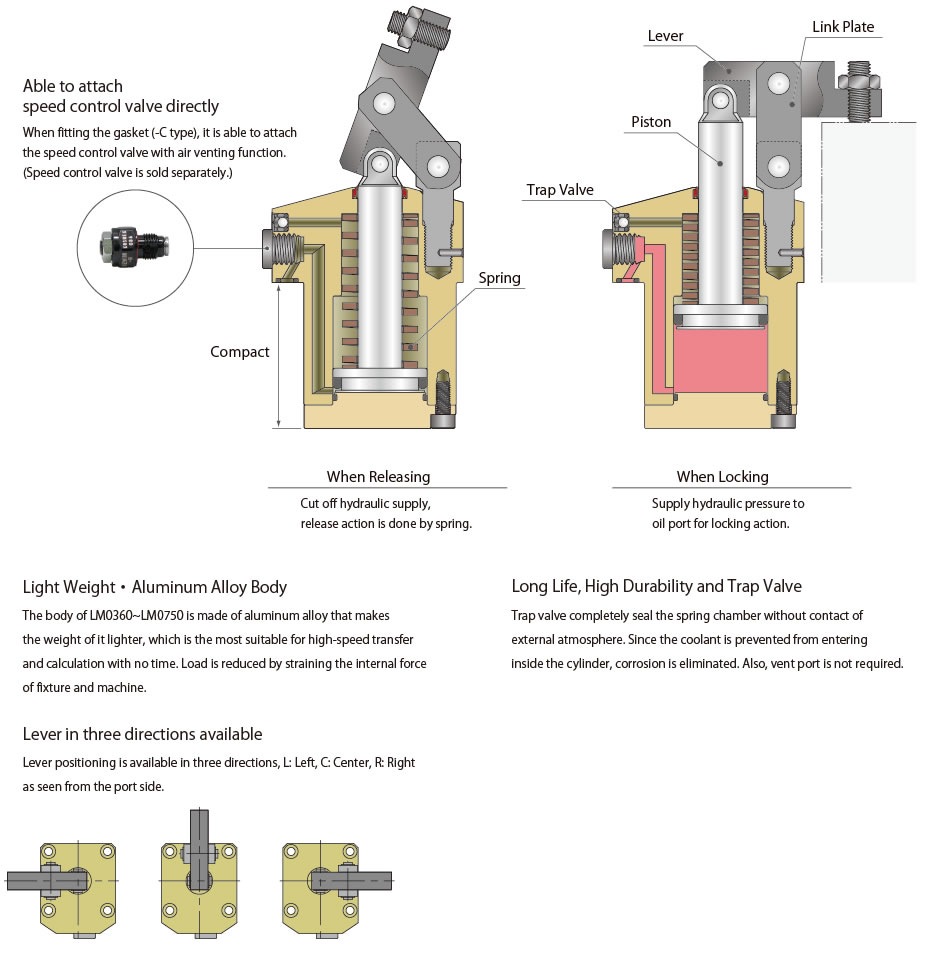

■Cross-sectional Structural Drawing

Cross-sectional Structural Drawing

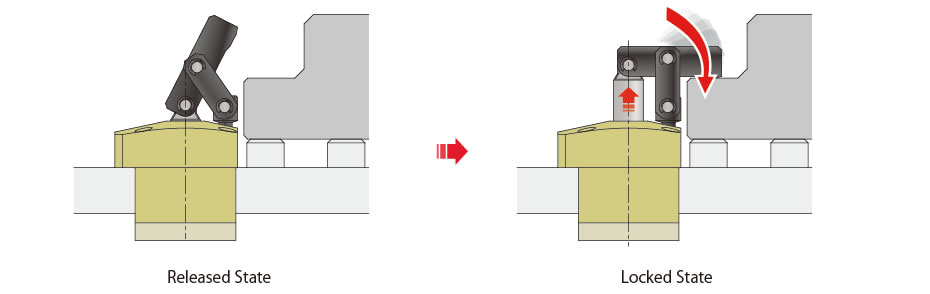

■Action Description

Action Description

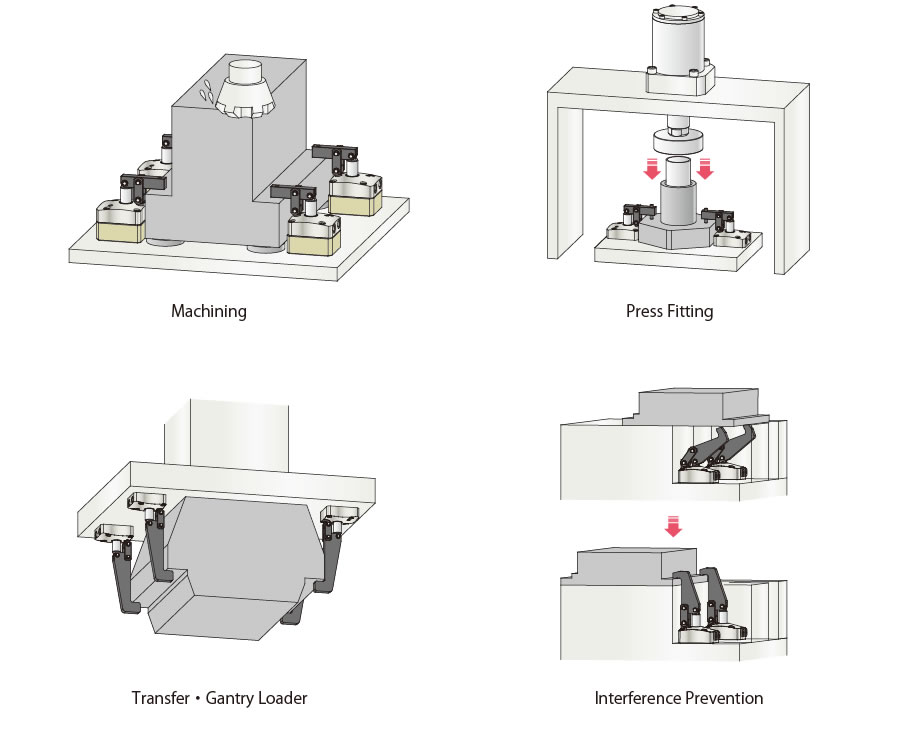

■Application Example

Application Example
