Quick Pallet Change
High Durability
Measured Value of
Locating Repeatability ｰ ±0.001mm

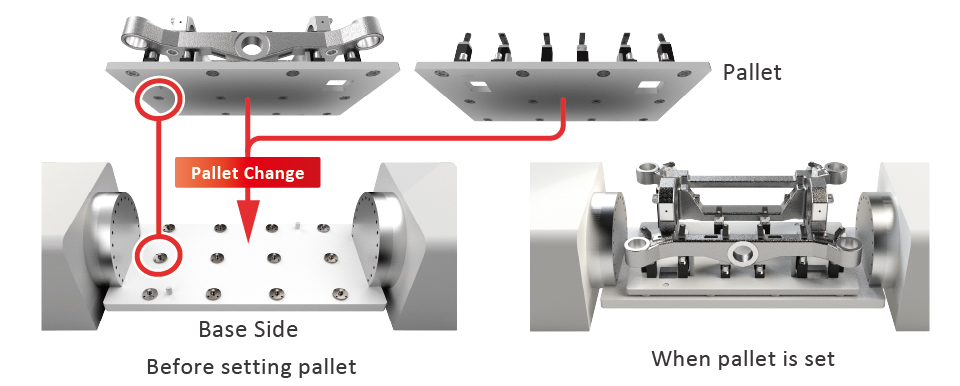

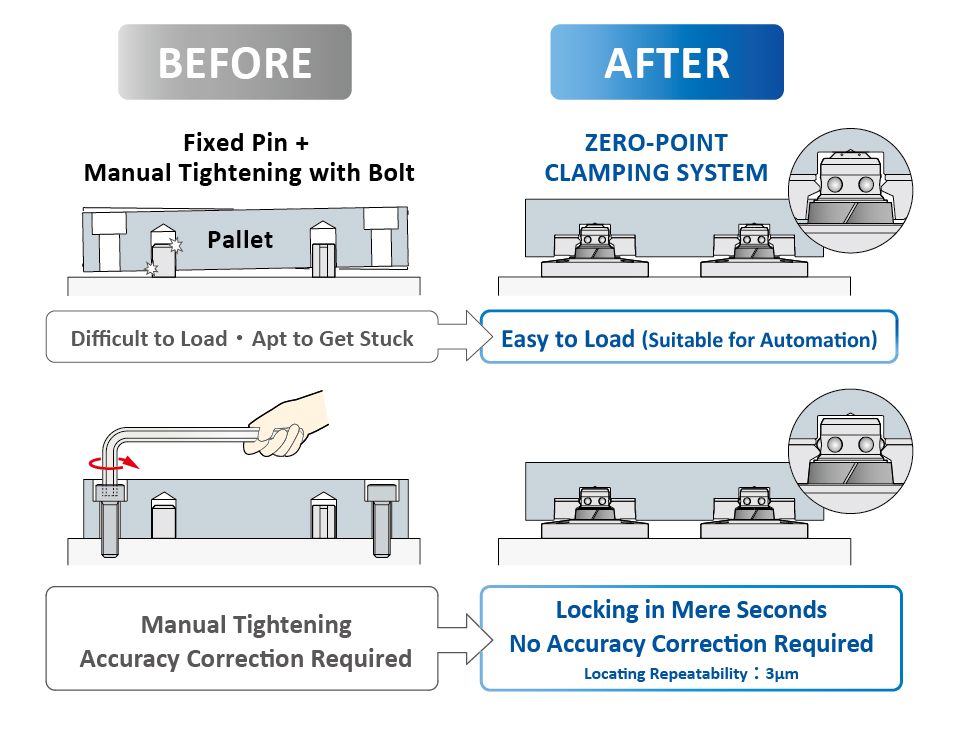

Difficult to position heavy pallets and plates on fixed pins?

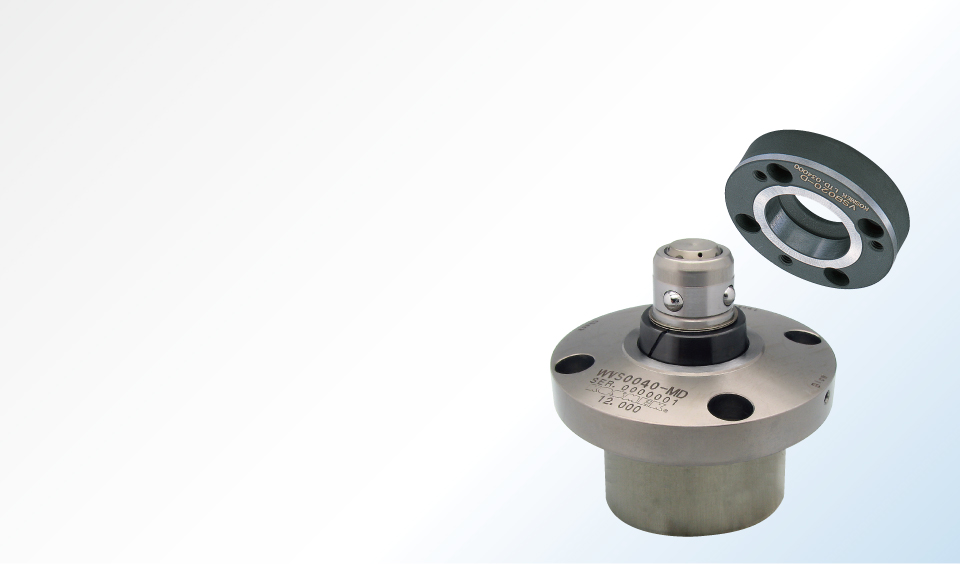

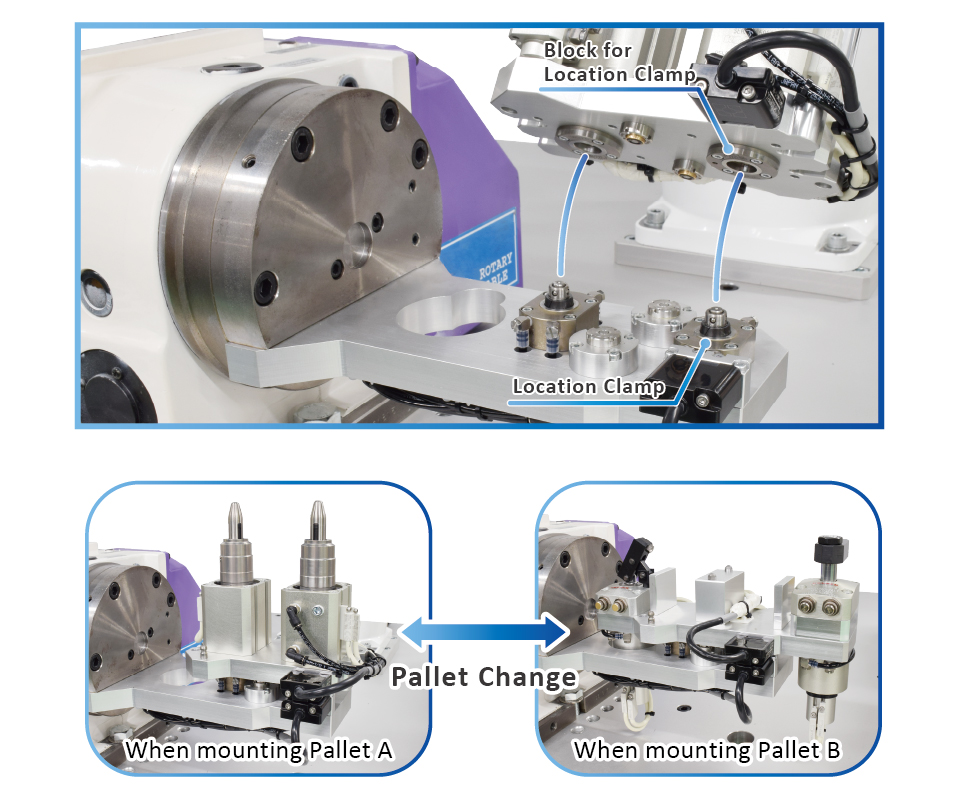

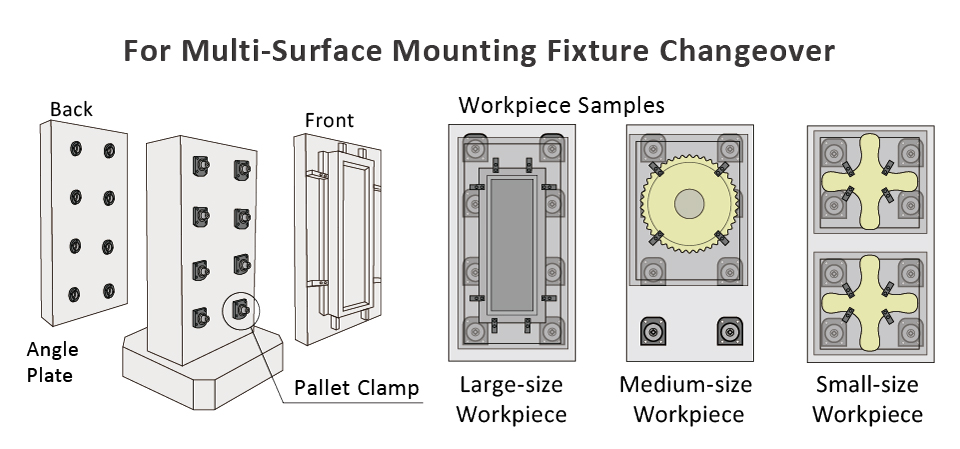

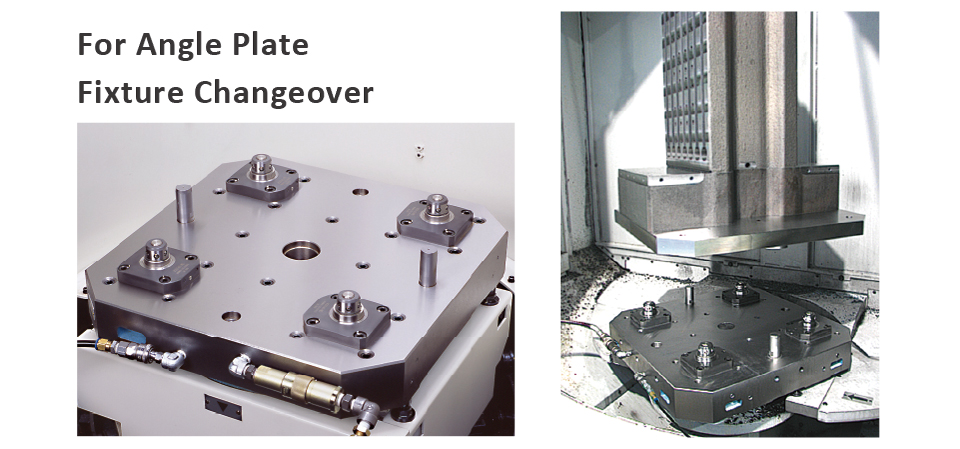

With the KOSMEK Zero Point Clamping Systems - pallet/location clamps,
anyone can change fixtures in mere seconds with high accuracy,
thus no accuracy correction is required. Drastic setup time reduction
for fixture change, pallet transfer, and outside setup.
Measured value of locating repeatability is constantly ±0.001mm no matter how many fixtures are set to a base. 3μm repeatability leads to elimination of backlash ensuring faster and easier fixture changeover and also enhanced and consistent machining precision for workpieces.
Environmental resistance: Contaminants are removed by air blow. Seating surface is provided with the air vent hole, seat check is possible by using a gap sensor, ensuring highly reliable operation.
The inclined flange surfaces enables cutting chips to flow smoothly, facilitating easy maintenance.
Lift-up function makes an optimal gap between the taper reference surface and the seating surface, preventing damage on the clamp during pallet loading/unloading.
Air blow prevents debris contamination. With the optimal gap by lift-up function, cutting chips and fluids are removed effectively.
The seating surface is provided with an air vent hole for seating confirmation, and by using a gap sensor, pallet seating can be confirmed.
KOSMEK exclusive positioning function - movable taper sleeve, enables instant, high-precision positioning and clamping in a single operation.

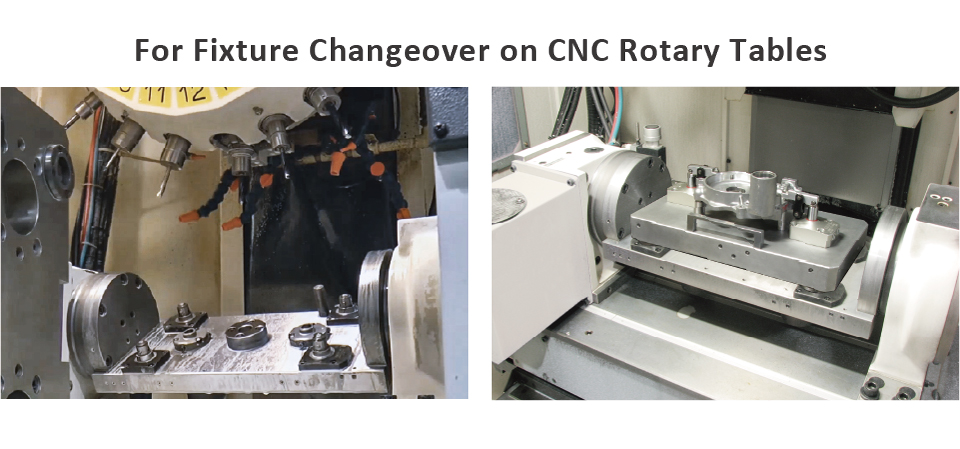

Fixture changeover becomes faster and faster, since fixture alignment and inspection are eliminated.

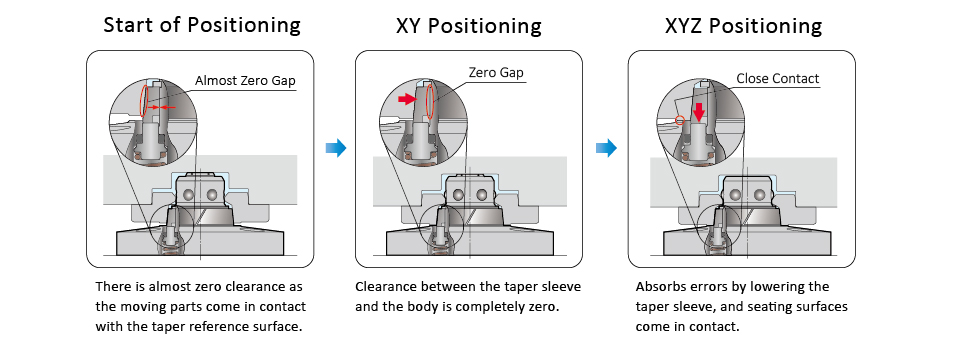

With marginal error absorbed by the movable taper sleeve, the clearance between the clamp unit, taper sleeve and block is eliminated enabling the repetitive positioning accuracy and stabilized clamping force.

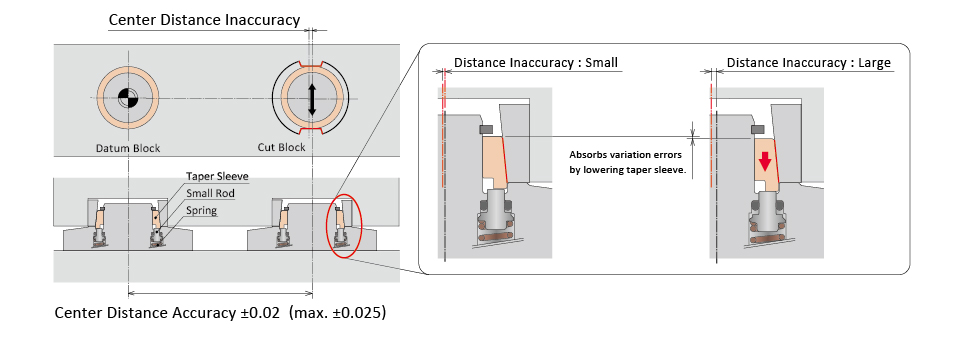

The movable taper sleeve absorbs distance variations minimizing the wear of positioning parts and prevents deformation of clamp/block.

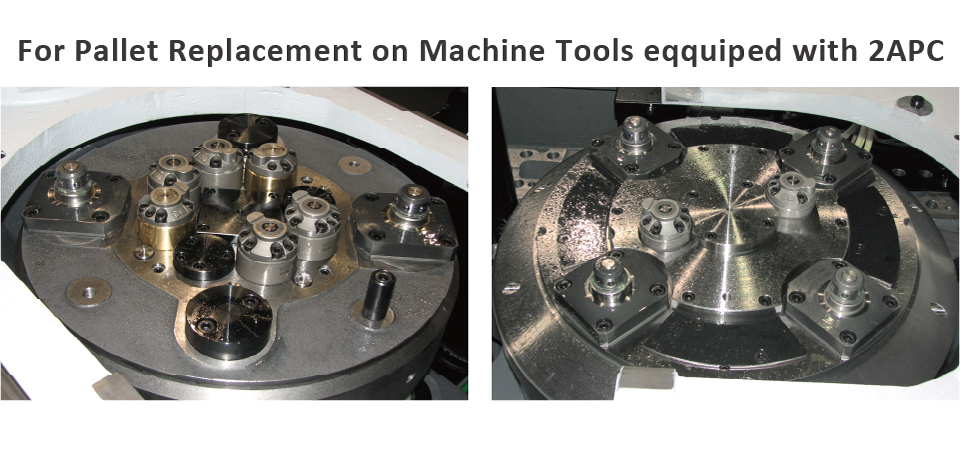

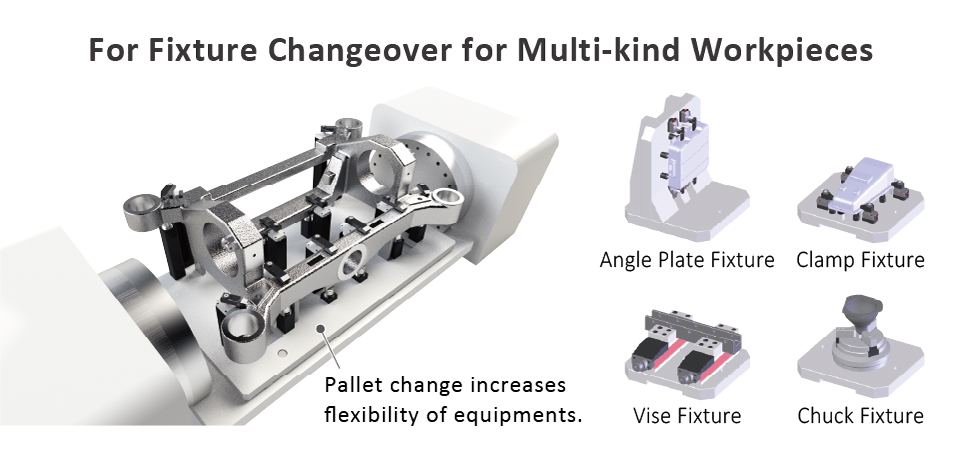

The precision assurance function is absolutely necessary especially for pallet transfer and/or multiple fixture changeover.
Designed for light-load processes, such as automated assembly lines.

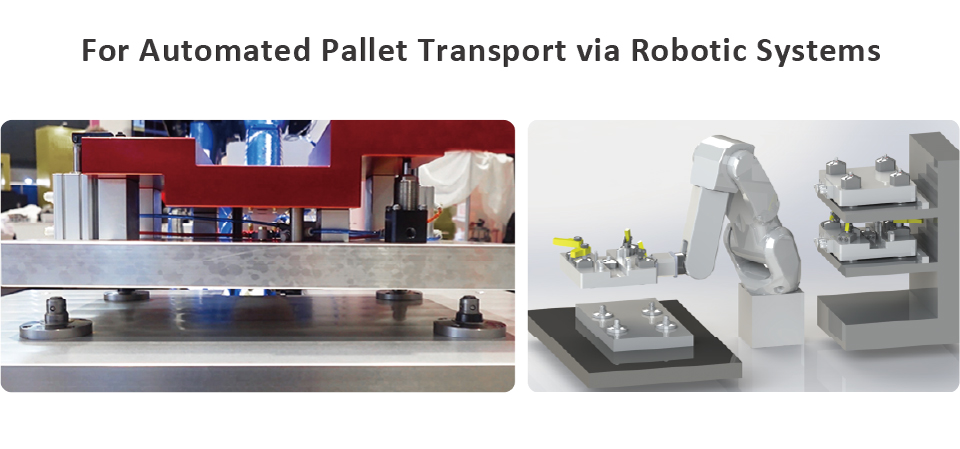

If you're exploring robotic pallet transfer, utilizing a single robot for multiple tasks, or automating fixture changes to handle different workpieces — this video is well worth your time. See how Kosmek enables flexible and efficient production with smart automation components.

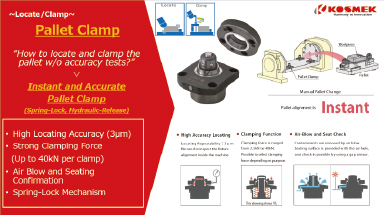

■ This document provides an overview of the positioning and clamping mechanisms for pallet clamps, as well as the unique features that ensure high precision and exceptional durability.
